BH1311 S-Y -

  • Model No BH1311 S-Y
  • Marka Evercore
  • Menşei Guangdong ,China

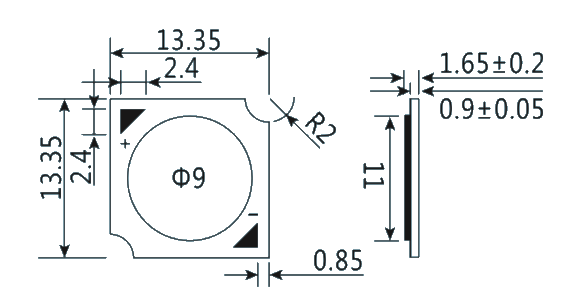

  • Chip PCB Boyutları 13x13 mm
  • Les çapı 11 mm
  • Sertifika ISO9001 / LM-80 / RoHS / CNAS / CE / IEC
  • Güç Tüketimi 4-15W

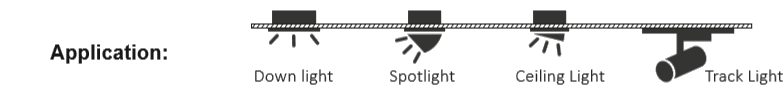

  • Uygulama Downlight / Spotlight / Ceilinglight / Tracklight
  • Teslimat Süresi 1-4 Week

Detaylı Bilgi

Evercore Supreme COB | Tam spectrum COB - Sunlight Serisi



Avantajları: lighting source for high-end landmark project.

  • Formula to simulate the spectrum of sunlight , conform to the standard of the advanced color evaluation system.
  • Ra>95 Lumens, efficiency >100lm/W, high color fidelity Rf:95, high color saturation Rg with 2 options : 100 or Rg>100.
  • National Invention Patent, advance technology.
  • Conformable and styled lighting effect , natural presentation of the objects.
  • Universal size, easy to install and uninstall.

Feature: Full-spectrum, high saturation, similar to the sunlight.

  • Ra-R15 >90, R9>90, healthy ,comfortable, natural.
  • LM-80 Certified.
  • 3 years /30000H working life warranty.
  • Chromatic aberration <3SDCM, good color consistency

NO Product Model Rated Power      (W) Rated Current (mA) Max. Current (mA) Min Voltage (V) Max Voltage (V) CCT        (K) Luminous efficacy (lm/w) Ra
1 BH1311-0112J4W30S-Y 4 120 160 34 40 3000 100 >95
2 BH1311-0112J4W40S-Y 4 120 160 34 40 4000 105 >95
3 BH1311-0112J4W50S-Y 4 120 160 34 40 5000 105 >95
4 BH1311-0212J9W30S-Y 9 250 350 34 40 3000 100 >95
5 BH1311-0212J9W40S-Y 9 250 350 34 40 4000 105 >95
6 BH1311-0212J9W50S-Y 9 250 350 34 40 5000 105 >95
7 BH1311-0312J12W30S-Y 12 350 400 34 40 3000 100 >95
8 BH1311-0312J12W40S-Y 12 350 400 34 40 4000 105 >95
9 BH1311-0312J12W50S-Y 12 350 400 34 40 5000 105 >95
10 BH1311-0412J15W30S-Y 15 400 500 34 40 3000 100 >95
11 BH1311-0412J15W40S-Y 15 400 500 34 40 4000 105 >95
12 BH1311-0412J15W50S-Y 15 400 500 34 40 5000 105 >95
